When contemplating my Apache server, I'm reminded of the mythical sea creature Scylla, which wiped out no fewer than six of Odysseus's men on his way home from Troy. My server's Worker MPM can devour multiple requests in one fell swoop. But where's the limit? How many threads do I need to configure to achieve maximum performance? And how many threads are just overkill?
Stress Test
With the use of the attack tool Siege [1], I will try to answer these questions with a stress test. Siege supports two modes of attack. The first simulates human web-surfing behavior, which explains the gaps of three seconds between individual access instances.
In the second mode, benchmark mode, these gaps are dropped and Siege incessantly throws requests at the server. To make the server sweat, Siege fields a configurable army of users – 10 by default, but you can use the following parameter to increase the size of the virtual vanguard until either the web server cries mercy or the attackers run out of system resources:
--concurrent=<number>
Which Way to Troy?
How does Siege know which server to attack? Again, there are two options. The parameter
--url="http://<my.site.com>/<index.html>"
lets you enter a URL that Siege will reload repeatedly. The option
--file="/home/charly/siege-urls.txt"
is more interesting in that I can add an arbitrarily long list of links to the file and Siege will attack them one after another. The --reps=<number> parameter lets me specify how many times Siege should repeat the stress test.
Also, I can set --internet to tell Siege not to request the pages in the order specified in the URL file, but to use a random order instead, which is far more realistic.
Battle Over
To prevent the test going on indefinitely, it makes sense to set the --time= parameter to limit the test run time.
The attack stops at the end of this time, even if the loops configured via the --reps= parameter have not been completed.
After finishing its task, Siege shows a summary of the results (see Figure 1).
|
|

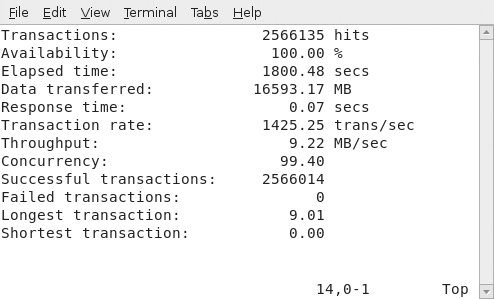

Figure 1: After the battle with the web server, Siege shows the results.
|
Charly Kühnast is a Unix operating system administrator at the Data Center in Moers, Germany. His tasks include firewall and DMZ security and availability. He divides his leisure time into hot, wet, and eastern sectors, where he enjoys cooking, fresh water aquariums, and learning Japanese, respectively.
