IoT communication with the Adafruit IO API
Switching via the Dashboard
The program code for the Huzzah board in Listing 1 and the circuit in Figure 1 already includes a convenient function for receiving messages from the dashboard. This approach makes it easy for the developer to trigger actions on the IoT device. The LED on GPIO 13 controls an event handler that receives messages from a feed. The example shows the feed titled LED
.

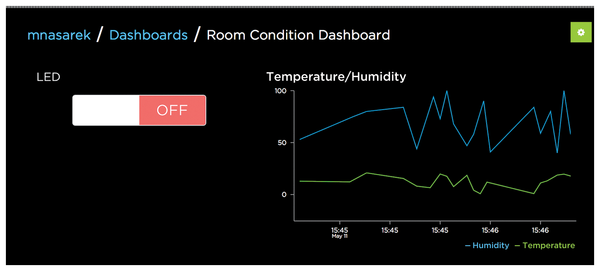

You create the dashboard in Figure 4 via Dashboard | Actions | Create a New Dashboard. You can then click on the blue plus symbol to add a new block to this dashboard. After selecting the toggle button and linking it with the LED feed, you create the block using Create block. The dashboard also includes a line graph next to the button for the LED that shows the temperature and humidity levels.

Finally, when you click on the toggle button on the dashboard, the sensor board detects it and turns the LED on or off. The function led-> onMessage()
in Listing 1 redirects incoming notifications to the handleMsg()
function, which analyzes the content of the message and switches to the appropriate LED.
Conclusions

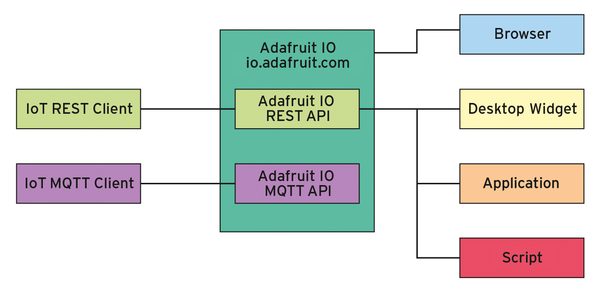

Open hardware platforms such as Arduino and Adafruit lower the barriers for creative IoT projects. Meanwhile, the Adafruit IO API makes it particularly easy to combine network-compatible sensors with web dashboards and control them via the Internet. Only a few lines of script integrate applications into the Linux desktop.
Dashboards don't just display the measured data, they are also perfect for controlling hardware. Application output, as well as system values such as CPU and memory usage, can trigger events on the IoT hardware. You can use this triggering feature to display a message or output a signal to another hardware component, such as a light or WiFi socket.
Infos
- Arduino website: https://www.arduino.cc
- Adafruit Industries: http://www.adafruit.com
- Arduino Yún: https://www.arduino.cc/en/Main/ArduinoBoardYun
- Adafruit IO API website http://io.adafruit.com
- Adafruit IO REST API documentation: http://io.adafruit.com/api/docs
- Adafruit IO Node.js server: https://github.com/adafruit/adafruit-io-node
- Adafruit Huzzah: https://www.adafruit.com.product/2471
- The Arduino development environment: https://www.arduino.cc/en/Main/software
- Adafruit Huzzah integrates into the Arduino IDE: https://learn.adafruit.com/adafruit-huzzah-esp8266-breakout/using-arduino-ide
- Argos plugin: https://github.com/p-e-w/argos
- KDE Plasma widget development: https://techbase.kde.org/Development/Tutorials/Plasma5/QML2/GettingStarted
- Conky desktop widget: https://github.com/brndmtthws/conky
- Simple Conky: http://custom-linux.deviantart.com/art/Simple-Conky-454759768
- Ostrich Sans font: https://github.com/theleagueof/ostrich-sans
