Managing Docker containers with Kubernetes

Services and Replication

Kubernetes supports two other very interesting features that I have not mentioned so far. Using a replication controller, you can scale pods horizontally. On the basis of a pod label, you can tell Kubernetes to provide the pod x times. Kubernetes then generates the desired number of instances of the container and makes them available on the existing minions. Kubernetes also handles the task of keeping the number of instances up to date. For example, if you stipulated that you want to have four instances of your Apache pods, Kubernetes would automatically start or stop Apache Docker instances until the number of instances corresponds to the definition.

Even if the individual containers get IP addresses from a network block defined previously in Docker, access to the individual instances of a pod are more typically via services. To offer this access, Kubernetes drops a kind of abstraction layer over specific pods of the same type and assigns a single IP address to this service. Access to the individual instances of a pod is then via that service IP. To allow this to happen, the request to the service IP is forwarded to the individual minions, and the kubelet proxy service on the minions is responsible for forwarding the request to the correct container.

You can imagine such a service as a kind of load balancer for a specific set of pods (Figure 1). For this system to work, every minion host must have an additional network segment from which the pod is then assigned an IP address. The kubelet proxy services forward the request to exactly this IP address. However, the only cloud provider that offers such a network configuration out of the box is the Google cloud platform. For all other providers, even if you use the Atomic image from this article in a local virtualization environment, a manual Docker service configuration is required. See the Docker documentation [9].

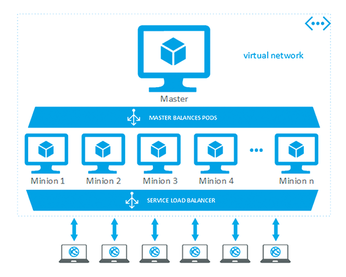

Figure 1: Kubernetes offers a service load balancer that supports access to several pods via a single IP address.

The flannel tool [10], which is included in the most recent releases of the Atomic image, makes it very easy to set up overlay networks, which Docker can then draw on, thus saving you from extensive manual configuration.


Even though Kubernetes is currently profoundly beta and the tool's emphasis on the Google cloud engine is obvious, the gains in flexibility compared with plain vanilla Docker installations are already huge. Kubernetes defines an additional abstraction layer for the existing hardware resources and makes them available as a large pool of hardware.

Which system ultimately runs the container is unimportant. Kubernetes independently pools the necessary resources and starts the container wherever resources are available. Through the use of replication controllers, the framework also helps to scale existing containers horizontally.

Kubernetes services help to facilitate access to a service through a single IP address, thus eliminating the cumbersome process of discovering container IP addresses. This feature is particularly valuable when you consider the fact that containers can be short lived; they are typically restarted just a short time later on a different host; thus, their IP address might change. Services abstract these changes, removing the need for configurations such as upstream load balancers.

The Author

Thorsten Scherf is a Principal Consultant for Red Hat EMEA. You can meet him as a speaker at conferences. He is also a keen marathon runner whenever time and family permit.
