Measuring performance with the perf kernel tool
On Fire
perf

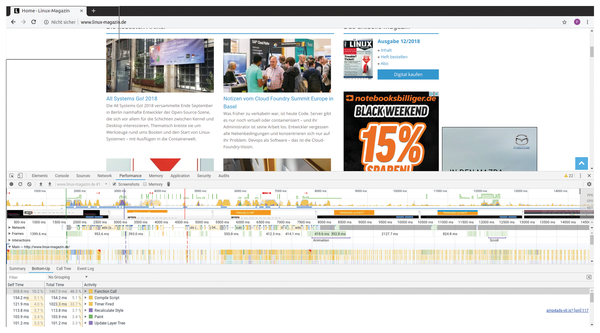

can also even create pretty graphics. Thanks to flame graphs, admins and developers can determine the most frequently used software paths. The developer tools integrated into browsers can also generate graphics (Figure 3).
The x-axis shows the load of the individual processes; the y-axis the resolution of each function call. The wider the blocks, the more resources their processes require, which helps you see which areas are problematic are most in need of optimizing.
Admins can also generate flame graphs from perf
data. You do not have to write the script yourself – look for the script on GitHub [5]:
git clone https://github.com/brendangregg/FlameGraph

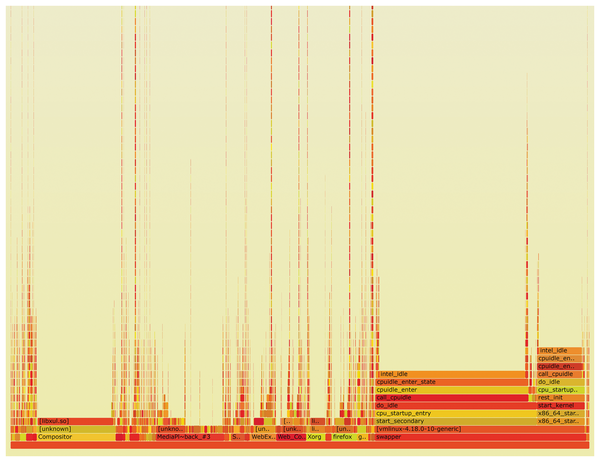

The commands from Listing 5 record the performance data and create a flame graph with perf script
(Figure 4). The flame graph shows that, although the browser is playing a 720p video, the kernel is pretty much in sleep mode. In the browser, individual sections of the flame graph can be zoomed in and out.
Listing 5
Commands for Creating a Flame Graph
01 sudo perf record -F 99 -a -g -- sleep 10 02 sudo perf script > out.perf 03 ./stackcollapse-perf.pl out.perf > out.folded 04 ./flamegraph.pl out.folded > out.svg 05 firefox out.svg

Dynamic Tracing
Using the perf
probe
subcommand and the --add
switch, admins can define dynamic trace points. Listing 6 shows the procedure using the Linux tcp_sendmsg()
function as an example.
Listing 6
tcp_sendmsg as Dynamic Trace Point
01 $ sudo perf probe --addd='tcp_sendmsg' 02 Added new event: 03 probe:tcp_sendmsg (on tcp_sendmsg) 04 [...] 05 $ sudo perf record -e probe:tcp_sendmsg -aR sleep 5 06 [ perf record: Woken up 1 times to write data ] 07 $ sudo perf report --stdio 08 [...]
Dynamic Duo
The Linux perf
subsystem and the perf
tool collection offer many possibilities for analyzing a system. Admins can easily collect and evaluate data with existing tools and scripts to achieve an overview. Correct interpretation of the data requires some knowledge of the perf
subsystem. Because the Linux kernel delivers perf
directly, you won't need to worry about installing external modules.
