Backup and Restore

OpenWrt allows users to backup the configuration (Figure 6), entire partitions, and flash a new firmware image. Select System | Backup / Flash Firmware.

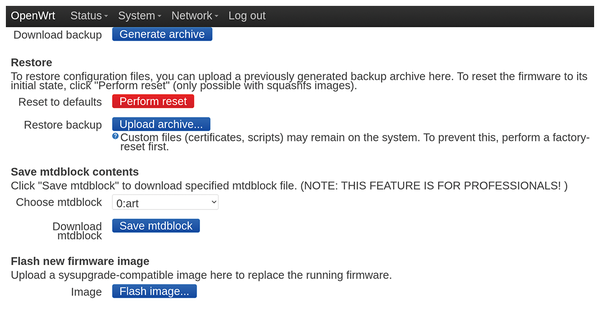

Figure 6: OpenWrt backup and restore menu

The partition backup is the most interesting and most advanced feature: It allows you to backup any partition from NAND or flash storage. The restore is possible only from the command line. I recommend that you copy the ART partition first – this partition contains personal factory calibration for device radios. This data is individual for each router and can't be copied from another device. Generally, it's a good idea to backup all partitions just in case and archive them into a modern and effective archive format such as Zstandard (zstd).

You can copy and restore flash drive partitions using the classic Unix tool dd (Disk Destroyer), however, NAND drives require special tools: nanddump and nandwrite. The partition dump from the terminal shouldn't be a problem:

nanddump --file /tmp/mtd4.nanddump /dev/mtd4

Restore with

nandwrite /dev/mtd4 /tmp/mtd4.nanddump

Make sure to double-check filenames and paths; a mismatch can put the device into a non-working state. More information is available in the official documentation [7].

Package Manager and Firmware

Like a traditional Linux distribution, OpenWrt has a package manager for installing, updating, removing, and other software-related tasks. Up to the 24.10 release, OpenWrt used opkg, but the developers decided to switch to apk – Alpine Linux's default package manager. Alpine is very popular as a Docker container base skeleton due to its minimalism. The apk package manager is fast and written in the C programming language, which makes it a good choice for OpenWrt. Table 1 shows a comparison of the apk and opkg package managers.

The OpenWrt rootfs partition, which holds the system files, uses the Squashfs compressed, read-only filesystem. All installed or removed packages are located in different partitions that are formatted in OverlayFS. This overlay will increase its space after each package install or removal, so upgrading all packages will take all the space of the overlay. It makes sense to install a few additional packages and use a full upgrade or make massive image changes only inside a virtual machine or a container environment.

An OpenWrt firmware upgrade could be very different because there are many options for how to do it. See the box entitled "Firmware Update Options."

Firmware Update Options

You have several choices for how to perform a firmware update, including:

• Traditional upgrade – Upload new firmware using the web interface or run the sysupgrade command in the console. Then, restore the configuration backup if needed. This approach works well if there are no extra packages installed; extra packages need to be reinstalled after each upgrade – not a very comfortable solution.
• Firmware Selector [8] – a great OpenWrt service that is capable of building customized firmware with different package sets and even built-in boot scripts that can perform useful tasks at system startup. One slight complication is that the user needs to use the Firmware Selector again after each new OpenWrt release.
• Attended Sysupgrade (on Figure 7) – this service simplifies the upgrade process to a few clicks, even with additional packages and custom configuration. If LuCI isn't an option, Attended Sysupgrade also works in the terminal thanks to auc command: There is also an alternative console tool called owut for upgrading the firmware:

owut upgrade --version-to=24.10.5

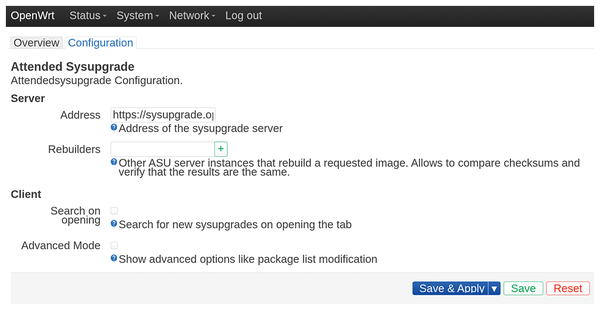

Figure 7: Attended Sysupgrade configuration.

Secure DNS in OpenWrt

Many network devices, including routers, still use classic DNS that works in plain-text mode without any encryption. This is great for Internet providers, governments, or hackers to monitor user network activity or even change DNS traffic for website blocking and other harmful or malicious behavior. There are two popular DNS protocols that provide encryption support: DNS-over-HTTPS (DoH) and DNS-over-TLS (DoT). DoH sends DNS queries over HTTPS, similar to a web browser – this option is great for privacy because it's harder to detect DNS traffic inside a waterfall of general web traffic. DoT encrypts traffic using TLS and uses port 853 for encrypted communication with DNS servers. Check Listing 1 for DoH setup details.

# Install the required package
opkg update && opkg install https-dns-proxy
# Test the domain resolution using nslookup - you should see the IP address:
nslookup openwrt.org localhost
# Default DNS services are Google DNS and Cloudflare DNS
# The next command will set Quad9 DNS as the default:
uci set https-dns-proxy.dns.bootstrap_dns="9.9.9.9,149.112.112.112"
uci set https-dns-proxy.dns.resolver_url="https://dns.quad9.net/dns-query"
uci commit https-dns-proxy
service https-dns-proxy restart
