Building a secure, simple VPN connection

Keep it Simple

Article from Issue 232/2020
Author(s):

With a single command, Dead Simple VPN builds a secure VPN connection.

If you are on a business trip and need to transfer data over an open hotel WLAN or use an unencrypted WiFi connection at a conference, you need to establish a secure tunnel to the Internet or a secure connection to your home network to protect your data.

The classic approach for this protection is a virtual private network (VPN). A VPN drills a virtual tunnel from the network you are currently using on your computer through the Internet to a trusted server on a trusted network, keeping third parties from accessing the transferred data.

OpenVPN and the more modern WireGuard [1] are classic tools for setting up a VPN. In practice, however, these tools are not exactly easy to use. Dead Simple VPN (DSVPN) [2] offers a simple solution: After installation, a single command is all it takes to establish the VPN connection.

Installation

With the exception of Arch Linux, DSVPN currently is not available in the package sources of popular distributions. Arch Linux users can install DSVPN with the AUR helper Yay by typing:

yay -S dsvpn

For other distributions, you must compile the application from source code. This sounds more difficult than it is in practice. Listing 1 demonstrates the procedure on a freshly installed Ubuntu 19.04. Listing 1 executes the VPN program with dsvpn --help and displays the individual parameters (Figure 1).

Listing 1

Installing DSVPN

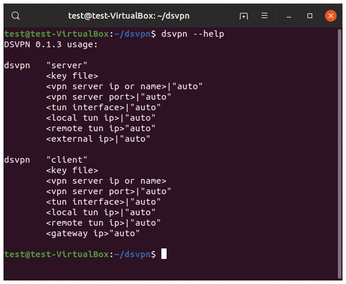

Figure 1: DSVPN can be built in a few seconds directly with Ubuntu's on-board tools. After installation, use help for tips on using DSVPN.

The make install command installs DSVPN, working around the package manager so that it does not appear in the typical package management tools. To cleanly remove the program from the system, either run sudo make uninstall in the source directory or delete the /usr/local/sbin/dsvpn file with root privileges. No other program files or directories are created during the installation. (See the "Raspberry Pi" box for installation on Raspberry Pi.)

Raspberry Pi

The Raspberry Pi's ARM CPU works with the Neon multimedia and signal processing extension. DSVPN supports this function, but you have to enable the Neon optimizations during the build with:

env OPTFLAGS=-mfpu=neon make

Configuration

To establish a connection, you first need a key. DSVPN does not distinguish between private and public keys. To create the vpn.key key file in the current directory using the random number generator /dev/urandom available on the system, use the following command:

$ dd if=/dev/urandom of=vpn.key   count=1 bs=32

Later on, you will also need the key on the client computers that you want to connect to the server's DSVPN. Copy the key file to a USB stick.

You have now laid the foundation and completed the installation on the server. Repeat all of these steps on the client computer except for creating a key file. Instead, take the prepared USB stick and copy the vpn.key file to the client system. A VPN/ subfolder in the home directory or the home folder itself is recommended as the storage location.

Next, call the VPN service on the server as shown in Listing 2. In the basic configuration, the system listens on port 443. This port, which is actually used for HTTPS connections, usually also works with public hotspots (such as those at hotels or events).

Listing 2

Calling the VPN Service



However, since you need port forwarding from the router to the DSVPN server, network-attached storage (NAS) may cause you problems since it usually requires ports 80 and 443 for encrypted connections (see the "Forwarded" box). If necessary, extend the call, adding the desired port number (line 5).

Forwarded

On a typical home network, a WiFi router ensures that the connected computers find their way to the Internet. However, the reverse route, from the Internet to a specific computer on the LAN, is not guaranteed: Unsolicited requests from the Internet are usually simply dropped by the WiFi router.

Therefore, for the VPN network, you need to set up port forwarding from the WiFi router to the computer equipped with DSVPN. The procedure is virtually the same for any vendor; in the following example, I use a Fritz!Box with the current firmware version 7.10. Open the administration back end in a web browser with the URL http://fritz.box. Then click on the Port Sharing tab via Internet | Permit Access.

Clicking on Add Device for Sharing launches a wizard that helps you with the subsequent configuration. First select the appropriate device, and then click the New Sharing button. In the dialog, change the selection to Port Sharing and enter the data as shown in Figure 2. Select the Service Name; for the port, you must use the port specified when calling dsvpn.

Figure 2: On a home or office network, VPN does not work without port forwarding from the router to the VPN server. Port 4443 is typical for a VPN, but if you want to break out of restrictive networks, port 443 is the best choice.

Opening a Connection

To check the connection, call

ip addr show tun0

The output from this call should show that there is now a new network device named tun0, as well as its IP address (Listing 3). You can check if port forwarding works with CanYouSeeMe.org (Figure 3). The page should automatically determine your external IP address, so you only need to correct the port number (4443 in this example). If the check returns Success, you can proceed to the next step.

Listing 3

Checking the Connection

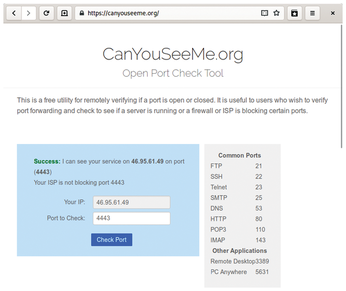

Figure 3: Use CanYouSeeMe.org to see if port forwarding works. Note that the DSVPN server must also be active.

For an initial test, use the command in Listing 4 to enable the VPN connection from a remote network to your home computer (e.g., via a hotspot served up by your mobile phone). You then should be able to use all of your home or office network's resources immediately, even while you are on the move. This includes, for example, file sharing or network drives (Figure 4). The connection is maintained until you close DSVPN on the server or client with Ctrl+C.

Listing 4

Enabling a VPN Connection

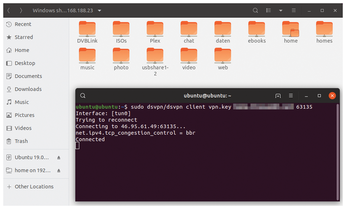

Figure 4: An example of the benefits of a VPN connection: You can access the network shares on your home network via the hotspot provided by a smartphone on a mobile network.

If you want to use DSVPN regularly, it makes sense to get a DynDNS address and set up the service on the WiFi router. This means that instead of reaching your network via the Internet IP, which is constantly changing, you use an intuitive URL. Most router manufacturers integrate a corresponding function into the configuration interface; for a Fritz!Box, you will find the settings in Internet | Permit Access | DynDNS. Many DynDNS providers charge a monthly fee, but there are also dedicated services such as FreeDNS, which offers up to five hosts for free [3].
