Indoor navigation with machine learning
Evaluating the Properties
There is a reason why many ensemble learning methods rely on decision trees. Decision trees are robust against outliers, and they process categorical data that does not need to be metrically related. You do not need to scale the data. And, incidentally, they prioritize attributes. Listing 6 finds a relative importance of 9.0 percent for the second attribute, WLAN 1, and 7.7 percent for WLAN 6. The query feature_importances_<0.1
assigns these two indices to the variable csel
, which then reduces the output data by just these two columns. Repeating the calculations above with the adjusted data yields a similar result: Tom is in the living room with a probability of 89 percent.
Listing 6
Prioritizing the Properties
fi = classifier.feature_importances_ print('Feature importance: ', fi) csel = np.where(fi<0.09) df.drop(df.columns[csel], axis=1, inplace=True ) df # output: # Feature importance: # array([0.25384511, 0.00911624, 0.09055321, # 0.21282642, 0.24906961, 0.1073945, 0.07719491])
Listing 7
Converting the Euclidean Distance
def dbm2DistanceConverter(rssi, db0 = -20, N = 4): ''' RSSI to distance converter Input: mesured power RSSI in dBm; db0 power in 1m distance; N attenuation exponent Output: distance in meters formula: Distance = 10 ((db0 - RSSI)/(10 * N)) ''' # free space path loss: N=2 # reduced path loss: N>2 return 10 ((db0 - rssi )/(10 * N)) def eucV(p,b): """Euclidean distance between two points squared""" return (p[0]-b[0]) 2 + (p[1]-b[1]) 2
Redundant data does not affect the accuracy of machine learning training because detecting redundancy is part of the training. This is different if redundant data slows down the learning process or feeds in attributes with contradictory data. Later, I will cover other methods that do not simply delete attributes but try to combine them.
Unsupervised Learning
Until now, I have assumed that I know the location for each measurement. But what if I was careless when noting down the rooms? Unsupervised learning looks for statements that can be derived from the data without contradiction. In this case, unsupervised learning would group similar measurements together and assume a common origin. However, whether Tom's location is the kitchen or the living room remains undetermined.
Like in Listings 1 and 3 using supervised learning, the data ends up in an array (Listing 8). To distinguish the data, I use Xu
instead of X
. The square brackets [:,:-1]
delete the target size in the last column. To compare the data, I later resort to the pandas DataFrame df
from supervised learning.
Listing 8
Output Data Without a Location
import numpy as np import pandas as pd import matplotlib.pyplot as plt fn = "images/wifi_localization.txt" #fn = "https://archive.ics.uci.edu/ml/machine-learning-databases/00422/wifi_localization.txt" Xu = np.loadtxt(fn)[:,:-1]
In my experiments here, I am restricting myself to the K-Means classifier [4]. The letter K expresses the similarity to the k-nearest neighbor algorithm, which searches for the k nearest neighbors, where k stands for the number. K-Means divides the data into k classes and optimizes the number of k centroids such that the sum of the squared distances of the points to their respective centroids remains minimal. Although it sounds a bit abstract, this can be programmed with just a few lines of code thanks to scikit-learn [5] (Listing 9).
Listing 9
The K-Means Classifier
01 from sklearn.cluster import KMeans 02 clusters = 4 03 kmeans = KMeans(n_clusters=clusters, init='k-means++', max_iter=300, n_init=10, random_state=0) 04 kmeans.fit(Xu) 05 y_pred = kmeans.predict(Xu) 06 clusterCenters = kmeans.cluster_centers_
Line 1 in Listing 9 imports the classifier and line 3 sets up the hyperparameters. The classifier needs to know the number of clusters; I will choose 4
for now. The other parameters are default values. k-means++
helps the software find good initial values, which it optimizes in max_iter
steps. It makes n_init
attempts and selects the best solution. random_state
starts the pseudorandom generator at a defined point, which means that each iteration of the computations returns an identical result.
Line 5 shows the fruits of my labor: The trained method uses kmeans.predict(Xu)
to assign the measurements to the clusters (i.e., in the case of four clusters, one of the numbers 0, 1, 2, or 3). The seven coordinates of the four clusters' focal points are stored in the method variable cluster_centers_
.

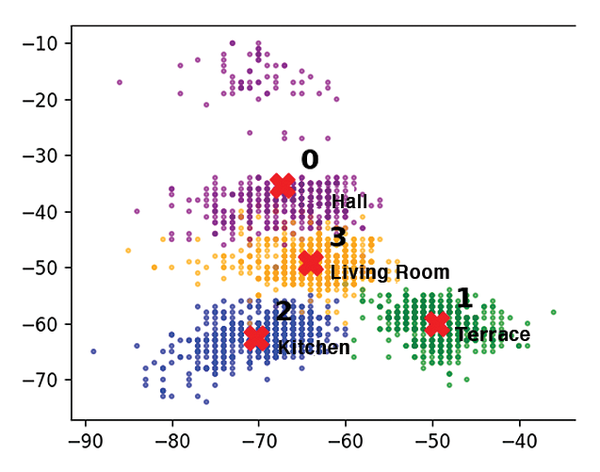

Listing 10 visualizes the result (Figure 10). Strictly speaking, Figure 10 is just a projection of the seven-dimensional property space onto a two-dimensional drawing plane. The choice of the
and 4
columns in line 1 is not entirely accidental: They contain the high-priority features found during supervised learning. When I look at principal component analysis (PCA) [6] later, I will discover another – also unsupervised – selection method.
Listing 10
Visualizing the K-Means Result
01 x1, x2 = 4, 0 02 colormap = np.array(['purple', 'green', 'blue', 'orange']) 03 plt.figure(figsize=(6,4), dpi=120) 04 plt.scatter(Xu[:,x1], Xu[:,x2], s= 10, c=colormap[y_pred]) 05 plt.scatter(clusterCenters[:, x1], clusterCenters[:, x2], s=180, c='red', marker = 'X') 06 for i, p in enumerate(clusterCenters): 07 plt.annotate(f'$\\bf{i}$', (p[x1]+1, p[x2]+3)) 08 plt.show()
The plt.scatter
instruction prints all the measured values, selecting the colors from the colormap
(line 4). The index for the color is the y_pred
set in Listing 9. The focal points are marked as red crosses by the second scatter
command in line 5.
Unsupervised learning divides the data into groups and chooses the assignments randomly. In Listing 9, if the initial value of the random random_state
were not fixed, the groups would get different numbers each time they ran – I'll come back to that later.
Hidden Spaces
Listing 11 provides statistical information about the assignment's quality; Listing 12 shows a typical output. The output's inertia says something about a cluster's compactness. The points should be grouped as tightly as possible around the cluster's focal point: The smaller the value for the same number of points, the better. The output's silhouette takes into account the distance to the neighboring clusters. The farther away the neighboring clusters are, the clearer the delineation of a cluster. The silhouette value lies between 1 (optimal) and -1 (possibly wrongly set cluster focal points). Both values describe the tendency in comparison with different cluster sizes with identical initial data.
Listing 11
K-Means Results
from sklearn.metrics import silhouette_score print(f'Input data shape: {Xu.shape}') print(f'Inertia: {kmeans.inertia_:3.1f}') print(f'Silhouette: {silhouette_score(X, kmeans.labels_)}') print(f'New labels: {np.unique(kmeans.labels_)}') clusterCenters = kmeans.cluster_centers_ print(f'Center of gravity: {clusterCenters}' )
Listing 12
K-Means Typical Output
Input data shape: (2000, 7) Inertia: 246771.6 Silhouette: 0.41023382751730914 New labels: [0 1 2 3] Center of gravity: [[-35.43058824 ...]

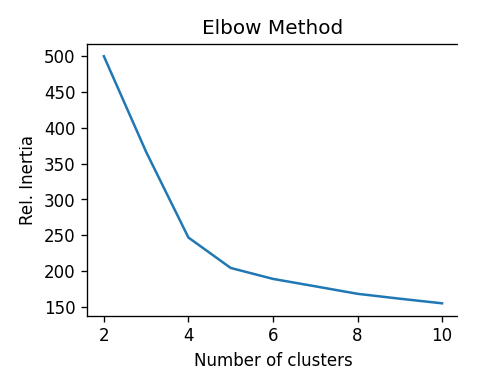

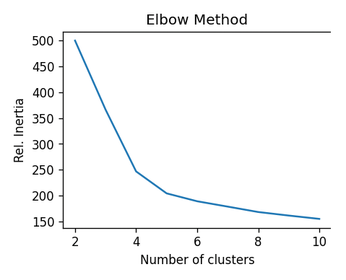

Listing 13 calculates inertias for different clusters and Figure 11 plots the values. The optimum result is a small inertia for the smallest possible cluster size. The elbow method looks for the point at which the inertia's steep slope changes to a shallow slope. With a little good luck, this point will be at a cluster number of 4 or 5. Listing 14 does a similar job for calculating the silhouette; Figure 12 shows the results. Again, the best values are at 4 and 5.
Listing 13
Finding the Optimum Cluster Size
wcss = [] for i in range(2, 11): kmeans = KMeans(n_clusters=i, init='k-means++', max_iter=300, n_init=10, random_state=0) kmeans.fit(Xu) wcss.append(kmeans.inertia_) plt.plot(range(2, 11), wcss) plt.title('Elbow Method') plt.xlabel('Number of clusters') plt.ylabel('WCSS') plt.show()
Listing 14
Plotting the Mean Silhouette Value
from sklearn.metrics import silhouette_score kmeansk = [KMeans(n_clusters=k, random_state=2).fit(Xu) for k in range(1, 10)] inertias = [model.inertia_ for model in kmeansk] silhouette_scores = [silhouette_score(Xu, model.labels_) for model in kmeansk[1:]] plt.figure(figsize=(4,3), dpi=120) plt.plot(range(2, 10), silhouette_scores, "bo-") plt.xlabel("Number of clusters") plt.ylabel("Silhouette score", fontsize=12) plt.show()

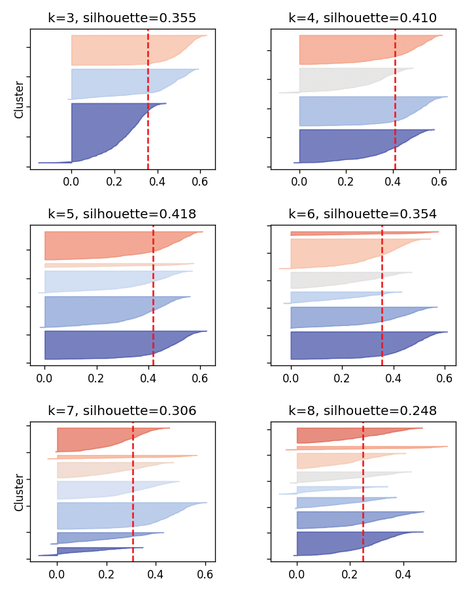

In Figure 13, each cluster group from k=3 to k=8 is given its own subplot. The mean values are indicated by a vertical red line. In addition, the silhouette value of each dataset appears as a horizontal bar, sorted by size. The more pointed the right end of the bar looks, the greater the variation of the values and the more nonuniform the cluster.
With five clusters, the maximum values are at a uniform level of almost 0.6. The second narrow bar suggests that the data contains one small cluster in addition to the four large ones. After expanding the number of clusters to five in Listing 9 (i.e., from clusters = 4
), K-Means identifies the set of points at the top of Figure 10 as a separate group (i.e., a fifth room).
Unsupervised learning finds connections that would have been hidden in supervised learning. Using this method puts forth the suggestion that the data was recorded in five different rooms, not four.
