Memory profiler

Heaptrack

Some time ago, we looked at an app called hotspot that operated as a GUI for a complex debugging application called perf. perf and hotspot let developers look at the internal workings of the applications they're working on to see where they are spending the most time and resources, helping developers improve the performance of that application and track down bugs. Heaptrack performs a similar role, only with a focus on memory allocation rather than CPU resources. If you're a developer, it can help you see when and where your application or utility is allocating and using memory, when and whether that memory is being freed correctly, and which elements within your code are asking for the most memory. Like perf, it's a complex process that requires a thorough understanding of the operating system and the application you're trying to profile, but due to Heaptrack's graphical nature, it's also a fascinating window into your applications, whether you're a developer or not.

Heaptrack operates in two modes. The first mode is used to generate a profile for the running utility or application and runs through gdb. The result will be a file that you pass as an argument to launch Heaptrack in its second mode, which is where you can explore your application's memory allocation through a lovely GUI. There are 10 tabs in this view, all offering a slightly different take on how memory was used during the profiling process. The first tab shows a summary of which calls used the most memory, leaked the most, or required the most temporary storage, but the more interesting tabs use this information to visualize usage over time. With Allocations, for example, you can see how memory use grows during execution. The Flame Graph is our favorite, though. It groups calls into a hierarchy, with calls calling calls stacked upon each other into mountains of memory use – fascinating!

Project Website

https://github.com/KDE/heaptrack

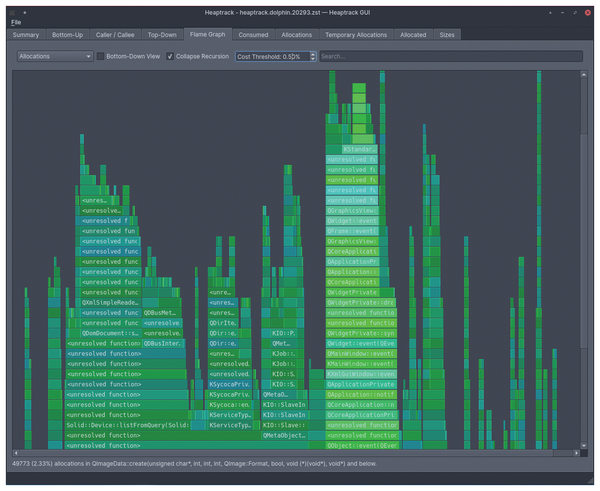

This is a profile in Heaptrack of the Dolphin file manager browsing and then opening an image file.
