Smartphone-based two-factor authentication
Double Your Security
Protect your system from unwanted visitors with two-factor authentication.
If the only protection between an attacker and a user account is a password, security-conscious administrators start to get nervous – and rightly so. Although strong passwords can be enforced, carelessness cannot be ruled out. Two-factor authentication (2FA) provides additional protection against unwanted visitors, even if a user chooses a weak password. While the user's password remains as the first authentication factor, a six-digit numerical code with a limited validity period generated by a smartphone authenticator app adds a second factor.
In this article, I will show how to require a one-time code at login (in addition to the user's password) by creating an app on the user's smartphone. This procedure was developed by the Initiative For Open Authentication (OATH) and has been an Internet Engineering Task Force (IETF) standard since 2011.
Getting Started
For this article, I am using Ubuntu 20.04, but the procedure is very similar on other distributions. You have a Linux client and a server. On the server, which goes by the name of influx in this example, I have an account belonging to user bob. Bob has been logging in with a password only. However, his organization now wants to switch Bob's account to 2FA.
I'll start by installing the authentication module on Bob's client (Listing 1, line 1) and then log in as bob and start the module (line 2)
Listing 1
Installing Authentication Module
01 $ sudo apt install libpam-google-authenticator 02 $ google-authenticator
The module first prompts you to decide whether the authentication should be time-based. It wants to know if the identical time – in terms of Coordinated Universal Time (UTC) [1] – exists on the two systems involved (smartphone and computer console). Reply yes since all systems today use Network Time Protocol (NTP) to synchronize their time.

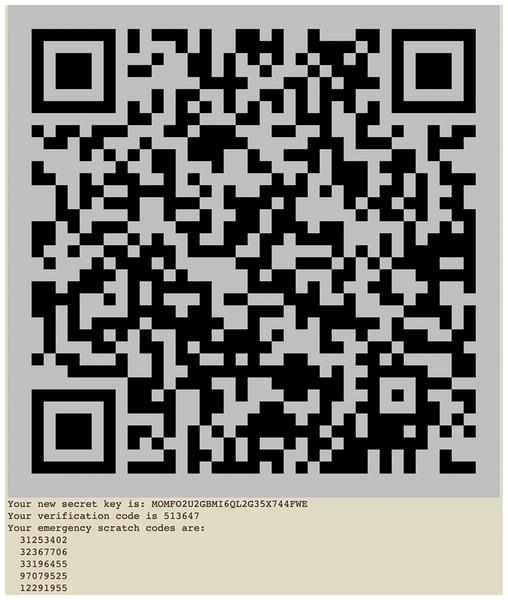

Next a QR code (Figure 1) appears, which you scan with a One-time password (OTP) app that you install on your smartphone; an OTP is only valid for a single use. There are plenty from which to choose; you can use any app that uses the Time-based One-time Password (TOTP) protocol. TOTP generates time-limited, one-time passwords based on the Hash-based Message Authentication Code (HMAC). For example, Google Authenticator is a very popular OTP app, although it is not open source.

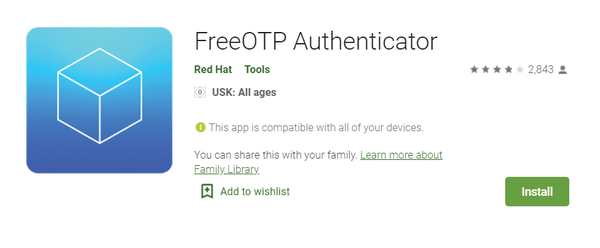

For this example, I will install the FreeOTP app developed by Red Hat, which is available for both iOS [2] and Android [3], on the smartphone (Figure 2). After you scan the code, a new button will appear in the app that lets you generate a one-time password on demand with a validity period of 30 seconds.
Now set aside the smartphone and return to the console. Below the QR Code in Figure 1, you will find a number of emergency scratch codes. If you lose your smartphone, you can still log in with these codes to generate a new QR code and start over. Each of the emergency scratch codes can only be used once. Keep these codes in a safe place.

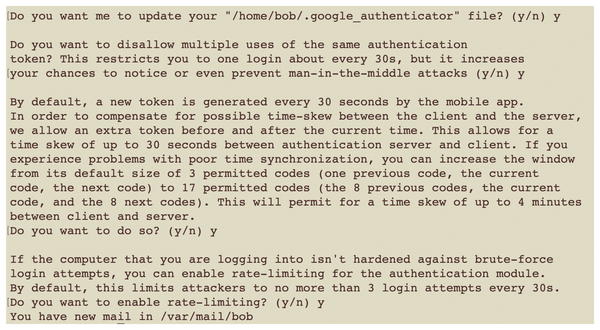

Google Authenticator will now ask you a series of security questions, all of which you can safely answer with y (Figure 3). The idea is to limit the number of logins per time interval, but at the same time ensure a certain tolerance for time differences between client and server.
You need to complete these steps for each user on the system who will be using 2FA. On the client side, all the work is done; time to work on the server.
Modifying PAM
To enable 2FA access, you need to modify two configuration files, for which you need root privileges.
First, modify the /etc/ssh/sshd_config
file (Listing 2). Find the two lines that begin with UsePAM
and ChallengeResponseAuthentication
and make sure that both end with yes
.
Listing 2
Modifying /etc/ssh/sshd_config
UsePAM yes [...] ChallengeResponseAuthentication yes
Next, edit the /etc/pam.d/sshd
file, again working as root. After the @include common-auth
line at the top of the file, add the following line:
auth required pam_google_authenticator.so
The file should now look like Listing 3.
Listing 3
Editing /etc/pam.d/sshd
[...] @include common-auth auth required pam_google_authenticator.so [...]
Now type the command
systemctl restart ssh

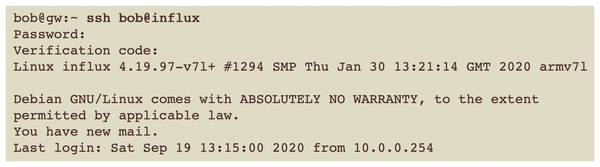

to start the SSH service. At the next login attempt via SSH (Figure 4), the server now not only prompts for the user password (Password:
in Figure 4), but also the one-time password (Verification Code:
), which you generate with Google Authenticator.
Console Login
My changes so far only apply to access via SSH. If you want to enable 2FA for the local login (the console) in addition to the remote login (the smartphone), you need to change the /etc/pam.d/login
file (Listing 4).
Listing 4
Modifying /etc/pam.d/login
[...] @include common-auth session optional pam_motd.so noupdate # insert this line: auth required pam_google_authenticator.so [...]
To do this, insert the following line
auth required pam_google_authenticator.so
after the @include common-auth
line. The session optional pam_motd.so noupdate
line is used to display notifications (Message of the Day); it is not available on all systems.
