Hair salons, medical offices, and other small businesses require customers to book an appointment. Traditionally, small businesses manage these appointments by offering a phone number. Customers call in, and an employee (or the business owner!) sets a date and time, usually writing everything down in an appointment book.

While this approach works, it suffers from a number of shortcomings. Customers can only phone in when the office is open. In addition, internal management becomes cumbersome if more than one person needs to know the next day's schedule: The receptionist then has to spend time telling each professional the weekly schedule instead of working on more important tasks.

To minimize (potentially significantly) these issues, you can leverage the power of technology and let computers do the hard work. Easy!Appointments [1], a free, open source web application, lets customers make appointments over the Internet even after business hours, while letting employees and business owners check their schedules from their smartphones without bothering the receptionist.

Installing Easy!Appointments

Easy!Appointments has a short list of prerequisites. It will run on any modern LAMP stack (see the "LAMP Servers in a Nutshell" box). Table 1 shows the current requirements for the latest stable version at the time of writing this article. I have also tested Easy!Appointments with OpenBSD's httpd and the MariaDB database with great success.

LAMP Servers in a Nutshell

Linux, Apache, MySQL, PHP (LAMP) describes machines serving web applications built upon these tools.

Setting up a LAMP server is very easy, but deploying one is outside the scope of this article. For testing purposes, you can set up a LAMP server in the cloud using a virtual private server (VPS) from Hetzner with a LAMP stack preconfigured (Figure 1). For more information, see Hetzner's documentation [2].

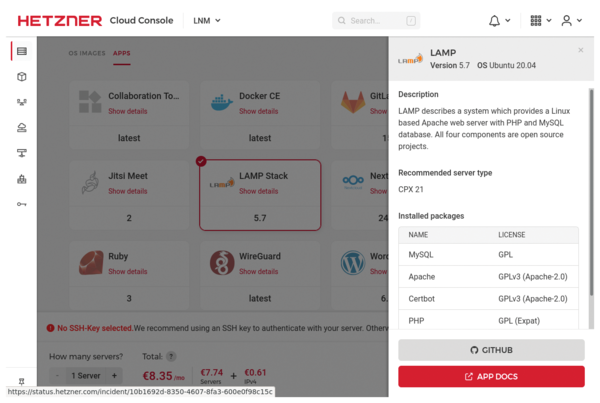

Figure 1: You can deploy a LAMP server via the Hetzner Cloud Console for testing purposes, if you don't want to roll one manually. © Hetzner Online GmbH

The instructions provided here are for setting up Easy!Appointments on a Debian LAMP server. If you are using a minimal Hetzner LAMP install, you will need to install some additional software:

apt-get update
apt-get install unzip php7.4-mbstring
systemctl restart apache2

Once you have a LAMP server configured, installing Easy!Appointments is a breeze. First, move to your web server root (e.g., /var/www/demo.operationalsecurity.es) and download Easy!Appointments:

cd /var/www/demo.operationalsecurity.es
wget https://github.com/alextselegidis/easyappointments/releases/download/1.4.3/easyappointments-1.4.3.zip

Next, decompress the downloaded archive (you will need the unzip program installed on your system):

unzip easyappointments-1.4.3.zip

Then, grant the web server user ownership over the files:

chown -R www-data ./*

You will now create a database for the web application as shown in Listing 1. If you are using a minimal Hetzner LAMP install, you will find MySQL's root password (needed to issue all of the following commands) at /root/.hcloud_password. Keep in mind that passing SQL instructions to MySQL via a pipe is not secure, and it is done here only for the sake of clarity.

echo "CREATE DATABASE easyappointments;" | mysql -u root -p
echo "CREATE USER easyappointments IDENTIFIED BY 'password';" | mysql -u root -p
echo "GRANT ALL PRIVILEGES ON easyappointments.* to easyappointments;" | mysql -u root -p

Finally, use the sample configuration file in Listing 2 as a template and edit it to your liking with a text editor:

cp config-sample.php config.php
vi config.php

01 <?php
02 class Config {
03
04   // ------------------------------------------------------
05   // GENERAL SETTINGS
06   // ------------------------------------------------------
07
08   const BASE_URL    = 'https://demo.operationalsecurity.es';
09   const LANGUAGE    = 'english';
10   const DEBUG_MODE  = FALSE;
11
12   // ------------------------------------------------------
13   // DATABASE SETTINGS
14   // ------------------------------------------------------
15
16   const DB_HOST      = '127.0.0.1';
17   const DB_NAME      = 'easyappointments';
18   const DB_USERNAME  = 'easyappointments';
19   const DB_PASSWORD  = 'some_password_here';
20
21   // ------------------------------------------------------
22   // GOOGLE CALENDAR SYNC
23   // ------------------------------------------------------
24
25   const GOOGLE_SYNC_FEATURE   = FALSE; // Enter TRUE or FALSE
26   const GOOGLE_PRODUCT_NAME   = '';
27   const GOOGLE_CLIENT_ID      = '';
28   const GOOGLE_CLIENT_SECRET  = '';
29   const GOOGLE_API_KEY        = '';
30 }

Once Easy!Appointments is loaded, you can visit your new site. An installation wizard will run automatically and help you finish the process (Figure 2).

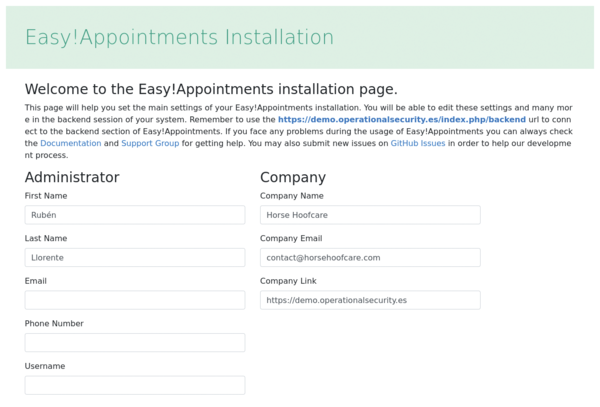

Figure 2: Easy!Appointment's installation Wizard will ask you for some information in order to get the site set up.

Business Features

One of Easy!Appointments' most useful features is that it supports more than one service provider. For example, if you are setting up Easy!Appointments for the fictitious Horse Hoofcare business, which employs three farriers, you'll need to create an account for each employee. Customers then will be able to book an appointment with the farrier of their choice. To do this, go to the admin toolbar located at yoursite.com/index.php/user/login and log in.

First, you need to define the types of available appointments in the Services tab. Note that services can be grouped into categories if desired. Each service can have a price, a location, and an estimated completion time (Figure 3). An undocumented feature is that services can be defined as either Fixed or Flexible (see Table 2) [3]. In addition, you can allow multiple concurrent customers to sign up for a service, which is useful for courses and group activities that allow multiple people to sign up at the same time.

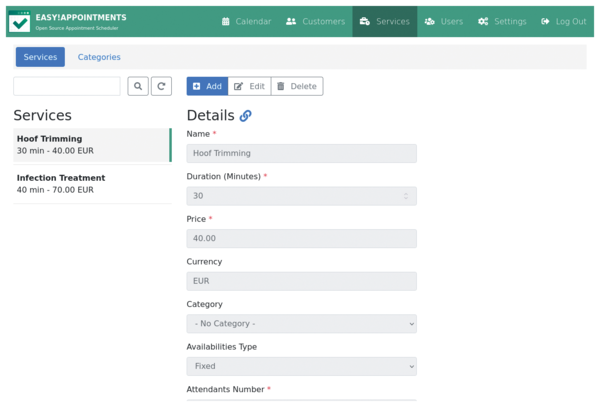

Figure 3: Add the services your business provides in the Services tab.

Once this is done, go to the Users tab and add as many providers as necessary (Figure 4). Keep in mind that you can assign different services to different providers. For example, you can assign Infection Treatment to a provider who is a veterinarian and Hoof Trimming to a farrier. If you have an employee who can provide both services, you can add both to that employee's list of services.

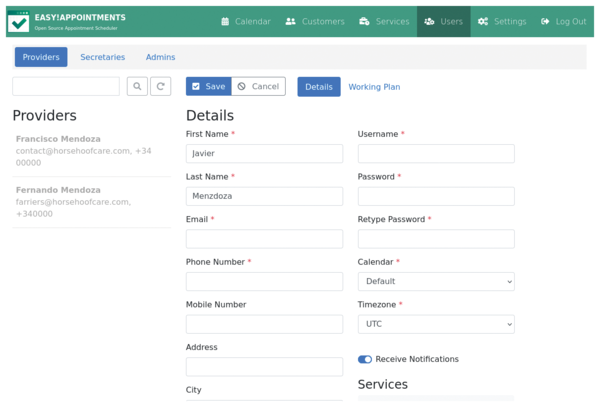

Figure 4: Select the Users tab to add as many providers as desired. You can also assign specific services to each provider.

Finally, go to the Business Logic tab located under Settings to set your business hours as well as assign employee breaks (Figure 5).

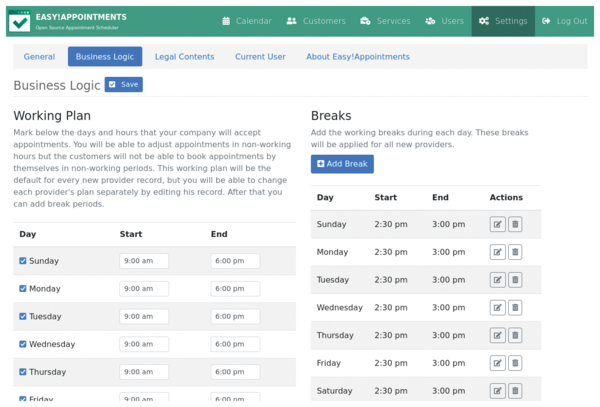

Figure 5: The Business Logic tab allows you to configure the available hours for booking appointments and to schedule breaks for your employees.

An optional, though undocumented, step is to configure Easy!Appointments to use an email provider for delivering email notifications to both your customers and employees. Email access can be configured in application/config/email.php as shown in Listing 3.

01 <?php defined('BASEPATH') or exit('No direct script access allowed');
02
03 $config['useragent'] = 'Easy!Appointments';
04 $config['protocol'] = 'smtp'; // or 'mail'
05 $config['mailtype'] = 'html'; // or 'text'
06 $config['smtp_auth'] = FALSE; // FALSE for anonymous relays
07 $config['smtp_host'] = 'smtp.example.org';
08 $config['smtp_debug'] = FALSE;
09 $config['smtp_user'] = '';
10 $config['smtp_pass'] = '';
11 $config['smtp_crypto'] = 'tls';
12 $config['smtp_port'] = '25';

Customer View

When potential customers visit your website, they will be offered a choice of services. Once the customer selects a service, a list of providers will be offered (Figure 6). After selecting a provider, the customer will be prompted to select an appointment time (Figure 7) and enter their contact information via a web form. Finally, an email notification is sent to both the customer and the employee whose services have been booked.

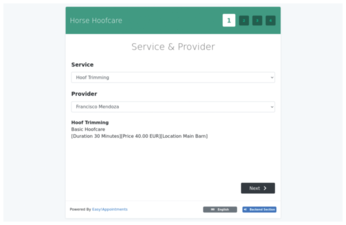

Figure 6: The customer selects both the service and the desired provider from drop-down lists.

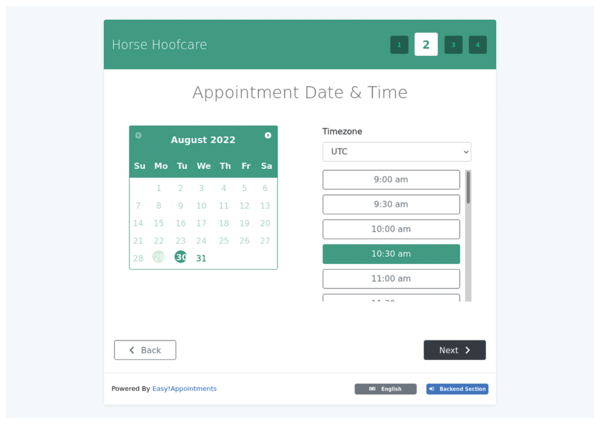

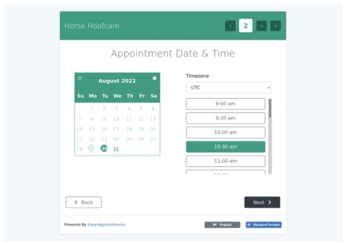

Figure 7: The customer selects a date and time from a list of available slots.

The customer can change or cancel the appointment at any time using a link included in the email notification.
